FIRE-RESISTANT GYPSUM BOARD Taouab TPF

Public information

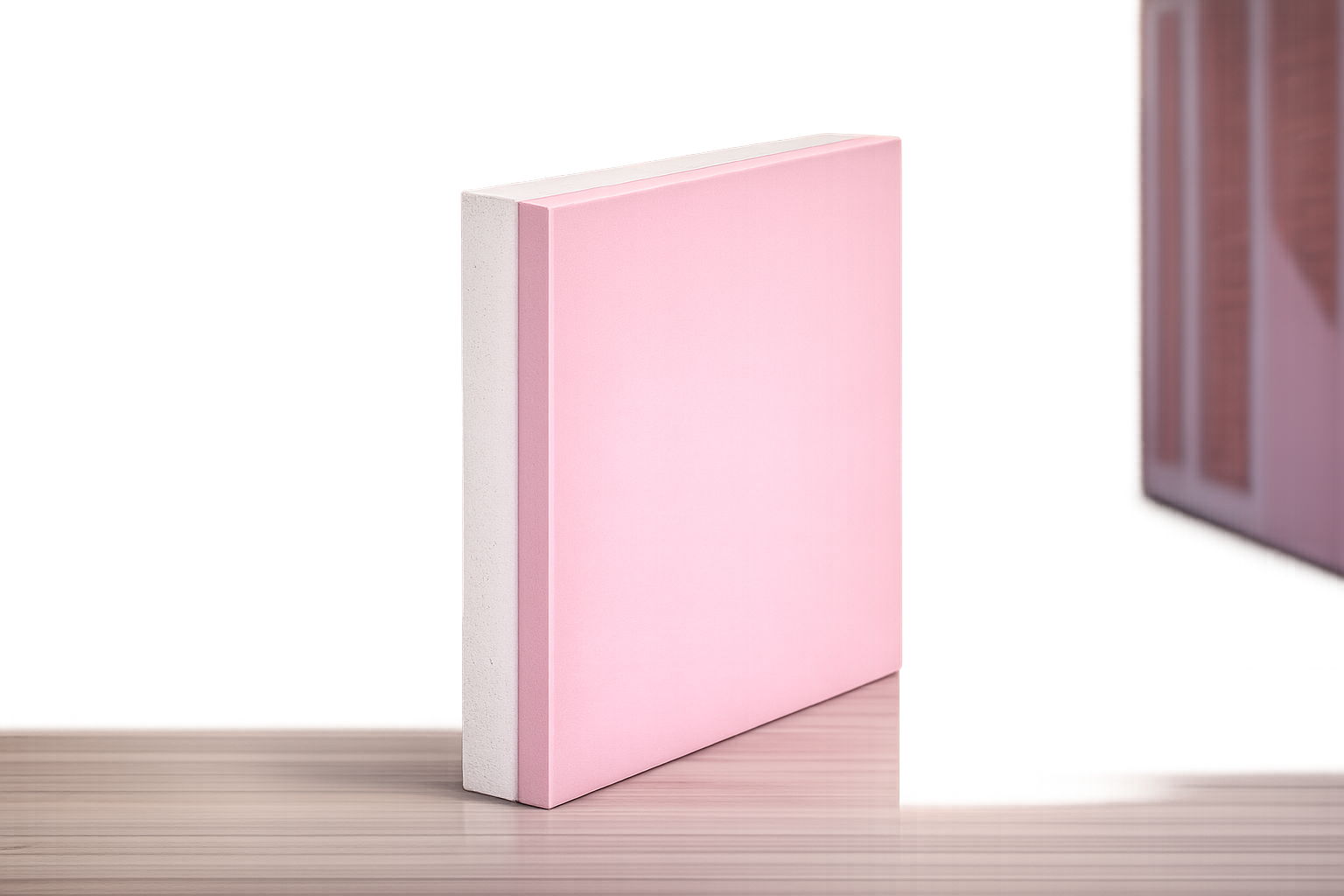

Taouab TPF Fire-Resistant Plasterboard is a gypsum board with enhanced fire resistance achieved through the addition of vermiculite and fiberglass. It is intended for passive fire protection systems and is suitable for new construction and renovation projects. The board is designed for use in residential buildings, public facilities, hotels, as well as industrial and commercial premises. It is manufactured from high-quality gypsum with a purity level equal to or greater than 95%, under strict quality control procedures to ensure durability and consistent performance. Applications • New construction projects • Renovation projects • Dry partitions • Wall linings • Suspended ceilings • Passive fire protection systems • Residential buildings • Public facilities • Hotels • Industrial buildings • Commercial buildings Advantages • Superior fire-resistant properties • Contains glass fiber for improved mechanical resistance during fire exposure • Suitable for passive fire protection systems • Manufactured under strict quality control • Durable and reliable for interior construction systems Technical Specifications • Appearance: Pink cladding • Width: 1200 mm • Length: 2000 to 3000 mm • Density: 800 to 850 kg/m³ • Thermal Conductivity: 0.25 W/mK • Reaction to Fire: A2-s1, D0 • Complies with Standards: EN 520+A1, EN 12524, EN 12501-1 • Fire Rating (EN 1364-1/2015): • E60 single-faced system • E120 double-faced system • Acoustic Insulation (UNE-EN ISO 10140-2): • 42 dB single cladding system • 54 dB double-faced system Edge Configuration • Straight Edge (SE) • Thinned Edge (TE) Available Variants • TPF BA13 — 12.5 mm — 10 kg/m² — 52 boards per pallet • TPF BA15 — 15 mm — 11.5 kg/m² — 46 boards per pallet • TPF BA18 — 18 mm — 15 kg/m² — 38 boards per pallet
